Products can be shown in following nice way.
Step 1: Create List with following 4 columns
Title : Singe Line Text
Location: Singe Line Text
ProductPhoto : HyperLink ,
Features: Multilines Lines Text
Step 2 : Upload Proper data
Step 3 : GO to All Items in List and click on Format current view as shown in following
,
Step 4: select Advance mode as shown in following picture
Step 5: Copy following code in Text Editor and save it.
Step 6: Select Tile and save as view as showing in following picture.
Source Code :
{
"$schema": "https://developer.microsoft.com/json-schemas/sp/view-formatting.schema.json",
"tileProps": {
"height": "450",
"width": "300",
"formatter": {
"elmType": "div",
"style": {
"display": "flex",
"align-items": "stretch",
"margin-bottom": "16px",
"min-width": "150px",
"flex-grow": "1",
"justify-content": "space-around",
"padding": "8px",
"color": "#333333"
},
"children": [
{
"elmType": "div",
"style": {
"width": "95%",
"height": "98%",
"box-shadow": "0px 1.6px 3.6px 0 #00000024, 0px 0.3px 0.9px 0 #00000024",
"overflow": "hidden",
"border-radius": "2px"
},
"attributes": {
"class": "ms-bgColor-neutralLighterAlt"
},
"children": [
{
"elmType": "div",
"style": {
"display": "inline-block",
"min-width": "300px"
},
"children": [
{
"elmType": "img",
"attributes": {
"src": "=if([$ProductPhoto] == '', @currentWeb + '/_layouts/15/userphoto.aspx?size=M', [$ProductPhoto])",
"title": "=if([$ProductPhoto] == '', 'No picture available', [$Picture.desc])"
},
"style": {
"width": "100%",
"height": "200px"
}
}
]
},
{
"elmType": "div",
"style": {
"display": "inline-block",
"min-width": "300px",
"vertical-align": "top",
"padding-left": "16px",
"padding-top": "16px"
},
"children": [
{
"elmType": "div",
"style": {
"margin-bottom": "12px",
"font-size": "16px",
"font-weight": "600"
},
"txtContent": "[$Title]"
},
{
"elmType": "div",
"txtContent": "Location",
"style": {
"color": "#767676",
"font-size": "12px",
"margin-bottom": "2px"
}
},
{
"elmType": "div",
"style": {
"font-size": "14px",
"margin-bottom": "12px"
},
"txtContent": {
"operator": "+",
"operands": [
"",
"[$Location]"
]
}
},
{
"elmType": "div",
"txtContent": "Features",
"style": {
"color": "#767676",
"font-size": "12px",
"margin-bottom": "2px"
}
},
{
"elmType": "div",
"style": {
"font-size": "14px",
"margin-bottom": "10px",
"width": "235px",
"height": "70px"
},
"txtContent": "[$Features]"
}
]
}
]
}
]
}
}
}

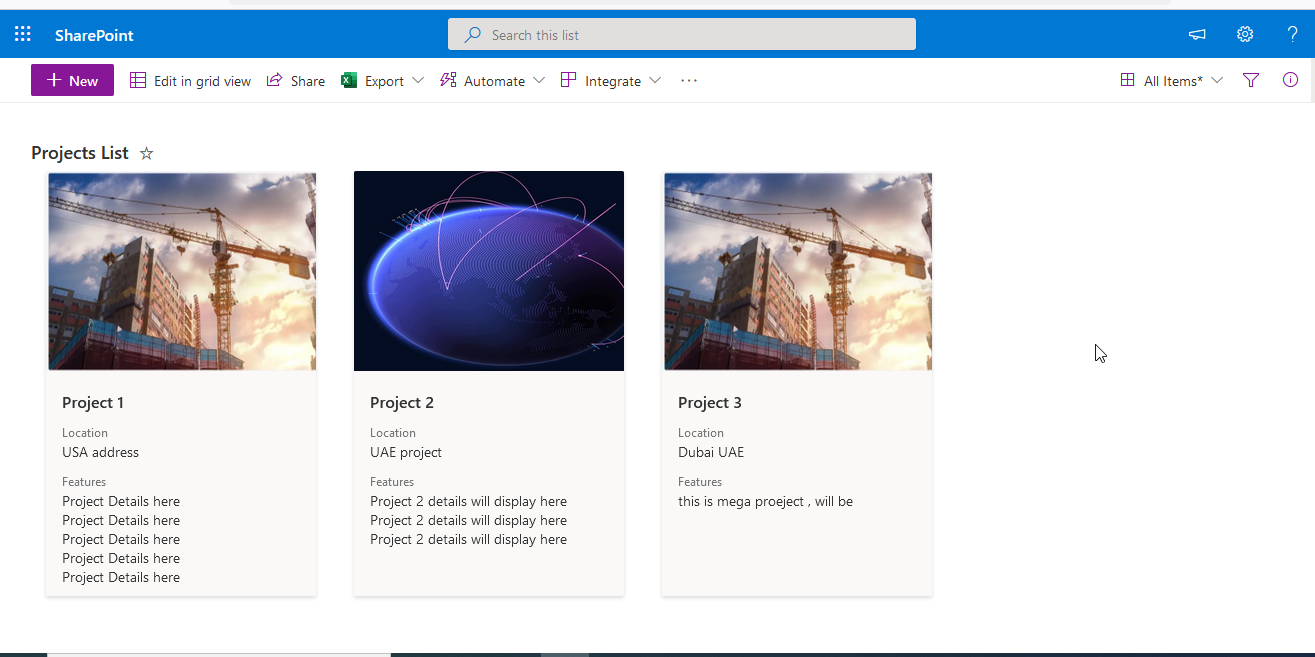

Output
